COMPACT-506 GALVO

COMPACT-506 GALVO

Price on request

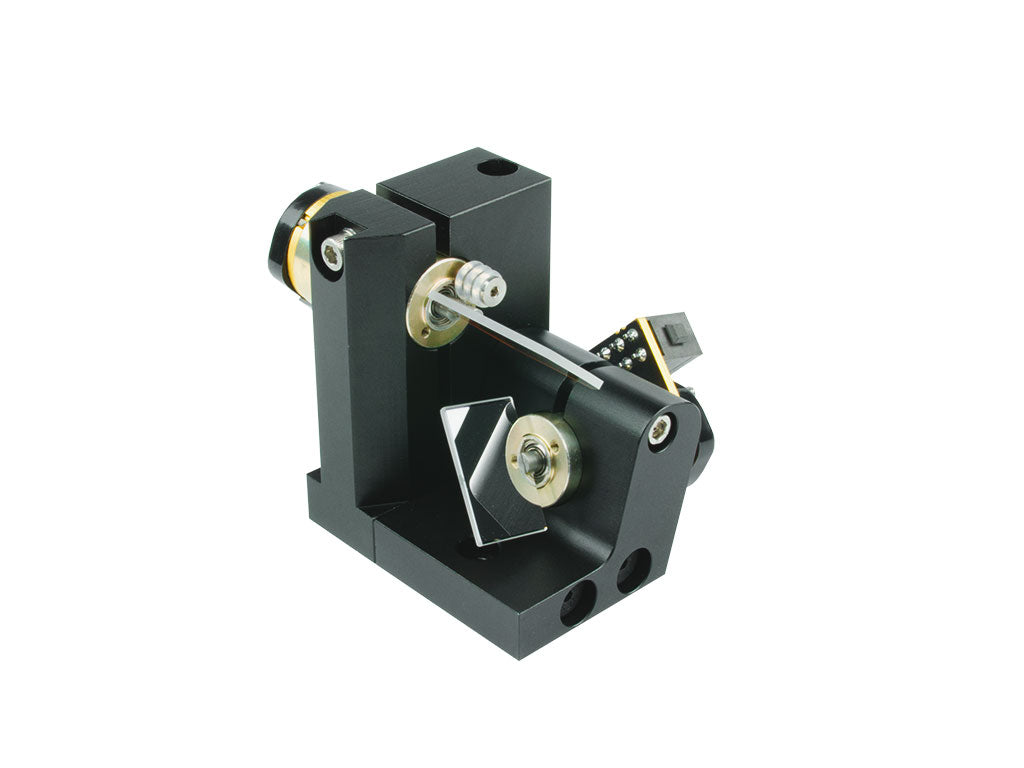

Compact 506 Galvanometer Scanner Collection

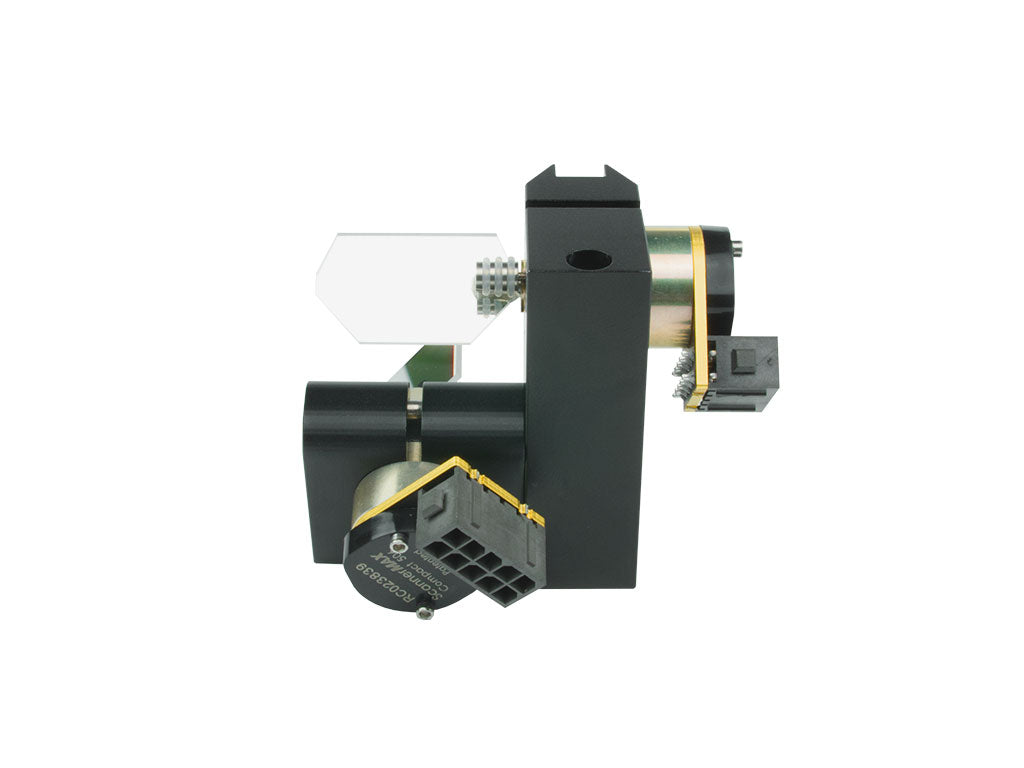

Compact 506 Single Galvanometer Scanner Rightside

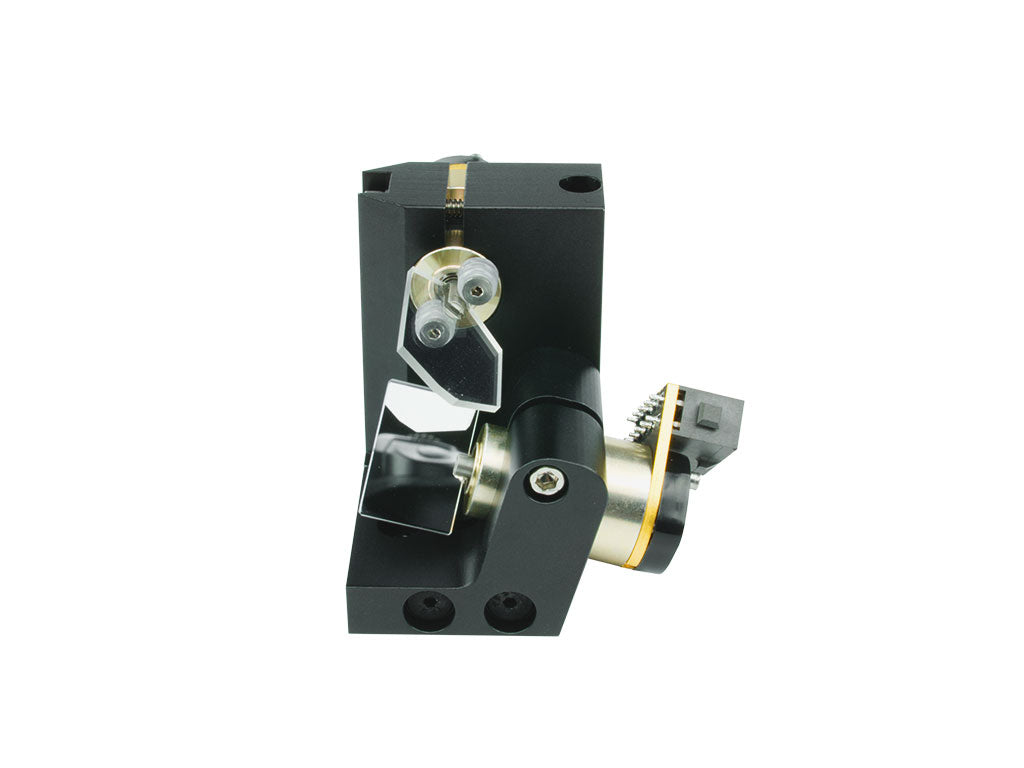

Compact 506 Single Galvanometer Scanner Frontside
Compact 506 Single Galvanometer Scanner Leftside
Compact 506 Single Galvanometer Scanner Bottom
  • Load image into Gallery viewer, Compact 506 Galvanometer Scanner Collection
  • Load image into Gallery viewer, Compact 506 Single Galvanometer Scanner Rightside
  • Load image into Gallery viewer, Compact 506 Single Galvanometer Scanner Frontside
  • Load image into Gallery viewer, Compact 506 Single Galvanometer Scanner Leftside
  • Load image into Gallery viewer, Compact 506 Single Galvanometer Scanner Bottom

Description

The Compact-506 is a galvanometer-based optical scanning system designed to be small package sized, low-cost, light weight and versatile. It is particularly suited for applications such as 3D printers, LIDAR systems, portable displays and handheld medical devices. The construction allows the Compact-506 galvo to move small mirrors as well as unusually large mirrors, beyond 1 inch in diameter, without a notch filter in the servo or a complicated servo loop.

Features of the Compact-506 Series

    • The Compact-506 optical scanner has a very low coil resistance that allows it to achieve exceptionally fast speeds without production excess heat inside the galvo.
    • Our patented position sensor design produces ten times the signal-to-noise ratio thus offering exceptionally high-quality motion.
    • It is available in two separate configurations: one that is compatible with conventional analog servo drivers; and one that is compatible with our MachDSP digital servo driver that offers better linearity.
    • When power is removed, the mirror is restored to a central position due to magnetic-spring-return action.

In addition to the MachDSP servo driver, the Compact-506 galvo will work with third-party servo drivers. Our engineering team can provide assistance in modifying your existing driver design to work with Compact-506, further reducing the cost of the overall scanning system.

Show Full Description

Specifications

Optimal Mirror Size: Up to 1 inch in diameter
Rotation Angle (1): +\-20 Degrees
Rotor Inertia: 0.014 Gram*Centimeter2
Torque Constant: 18400 Dyne*Centimeters per Ampere
Maximum Coil Temperature: 100 degrees Celsius
Thermal Resistance, Coil to Mount: 5.6 degrees Celsius per Watt, typical
Coil Resistance: 1.8 Ohms
Coil Inductance: 280 μh
Back EMF Voltage: 32.1 μV per degree per second
Peak Current: 10 Amperes, Maximum
RMS Current: 1.85 Amperes at Tmount of 50°C
Power Handling Capacity: 8 Watts at Tmount of 50°C
Small Angle Step Response: 150 μS with ScannerMAX 3mm mirror set
PD Linearity over 20 degrees(1): 99 % Minimum
PD Output Signal (Common Mode)(1): 300 μA (at 20mA LED current)
PD Output Signal (Differential Mode)(1): 20 μA perdegree (at 20mA LED current)
Mass: 12.8 Grams

NOTE

  1. Angular specifications are in mechanical degrees. For most applications, optical angle = 2x mechanical angle.
  2. Compact 506 can easily be fabricated with alternative coil configurations to achieve different specifications. Please contact us if you have different coil resistance, inductance, torque, current or connector requirements.

Specifications are at a temperature of 25° C. All mechanical and electrical specifications are +/-10%.

Show Full Specification
