Optical Coherence Tomography (OCT)

Pushing the Boundaries of OCT Imaging with ScannerMAX
Optical Coherence Tomography (OCT) has revolutionized medical imaging, industrial inspection, and scientific research, providing high-resolution, cross-sectional images with non-invasive techniques. Whether for ophthalmology, dermatology, cardiology, or materials science, OCT requires high-speed, precision beam scanning to capture clear, detailed images.
ScannerMAX galvanometers and actuators deliver the ultimate performance for OCT applications, offering unmatched speed, precision, and thermal efficiency in both large-scale diagnostic systems and portable medical instruments.
The ScannerMAX Advantage for OCT
ScannerMAX scanners are engineered to be Stronger, Cooler, and Faster, optimizing performance for high-speed raster scanning, vector-based imaging, and portable OCT devices.
- Stronger: Stiff rotor designs eliminate flex and distortion, maintaining optical precision
- Cooler: Low-resistance coil technology minimizes heat buildup for continuous operation
- Faster: High torque-to-inertia ratios enable rapid beam deflection, improving imaging speed without sacrificing accuracy
ScannerMAX Solutions for OCT Applications
Saturn Series – High-Speed OCT Scanning

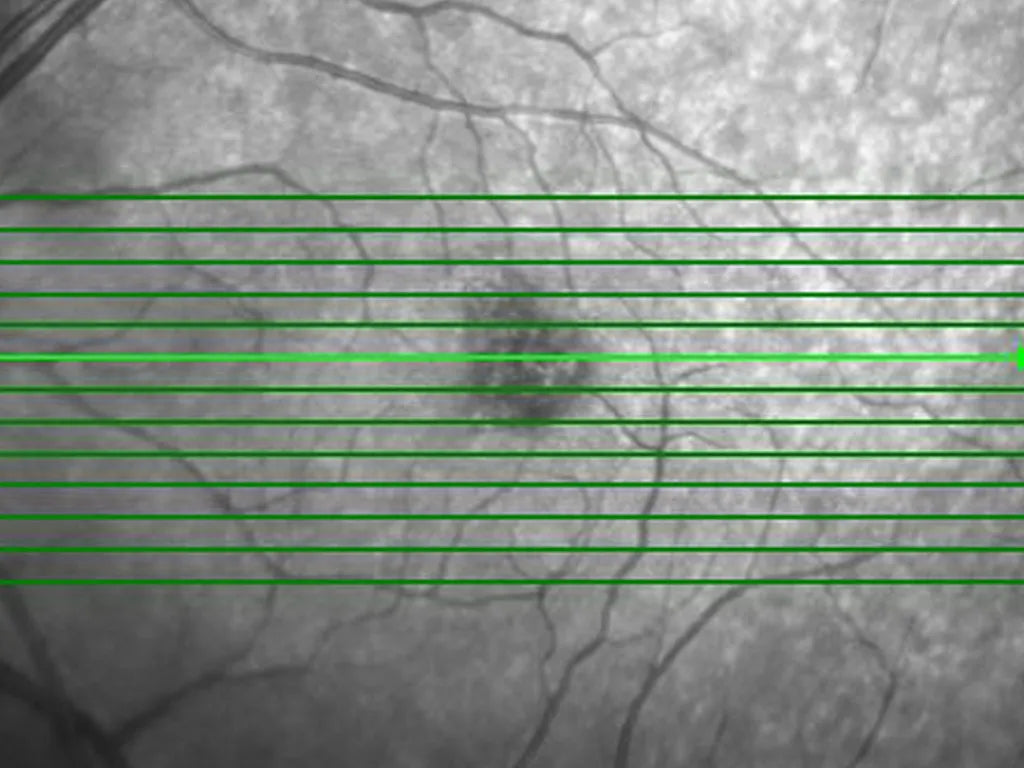

The Saturn series of optical scanners provides high-frequency raster scanning and precise beam deflection, making them ideal for OCT in medical diagnostics, industrial inspection, and scientific imaging. These scanners deliver:
- Ultra-fast beam positioning for real-time imaging
- Low-jitter, high-precision scanning for optimal clarity
- Low heat generation for extended use in high-duty cycle applications
Compact 506 – The Best Choice for Handheld and Portable OCT
For handheld and mobile OCT devices, size, weight, and power efficiency are critical factors. The Compact 506 scanner meets these demands with:
- Ultra-lightweight and compact design, perfect for portable and battery-powered devices
- High-speed scanning capability, ensuring sharp, real-time imaging even in small form factors
- Low power consumption, allowing for extended operation without overheating
- Strong magnetic design and precision bearings, ensuring durability and long-term reliability
Whether in ophthalmic clinics, dermatology offices, or point-of-care diagnostic tools, the Compact 506 enhances OCT accessibility and mobility.
Mach-DSP Servo Driver – Advanced OCT Control
For the ultimate in precision and flexibility, the Mach-DSP servo driver optimizes OCT scanning performance by providing:
- Customizable servo control algorithms (PD, PID, PDF, PDFF)
- PC-based real-time performance tuning
- Seamless integration with both the Saturn series and Compact 506 scanners
- Compact form factor for space-constrained applications
- Ability to store four separate tunings for additional configurability
Experience the ScannerMAX OCT Advantage
Whether you require high-speed raster scanning for large-scale OCT systems or compact, lightweight scanners for portable medical imaging, ScannerMAX delivers industry-leading solutions. Upgrade your system today and experience Stronger, Cooler, and Faster scanning.
